Reusable and precision template for quick positioning of anchor rods and bolts.
Adjustable according to your anchor spacing specifications between 80 and 700mm.
It allows you to position up to 8 anchors. This durable and multi-functional tool allows
you to:

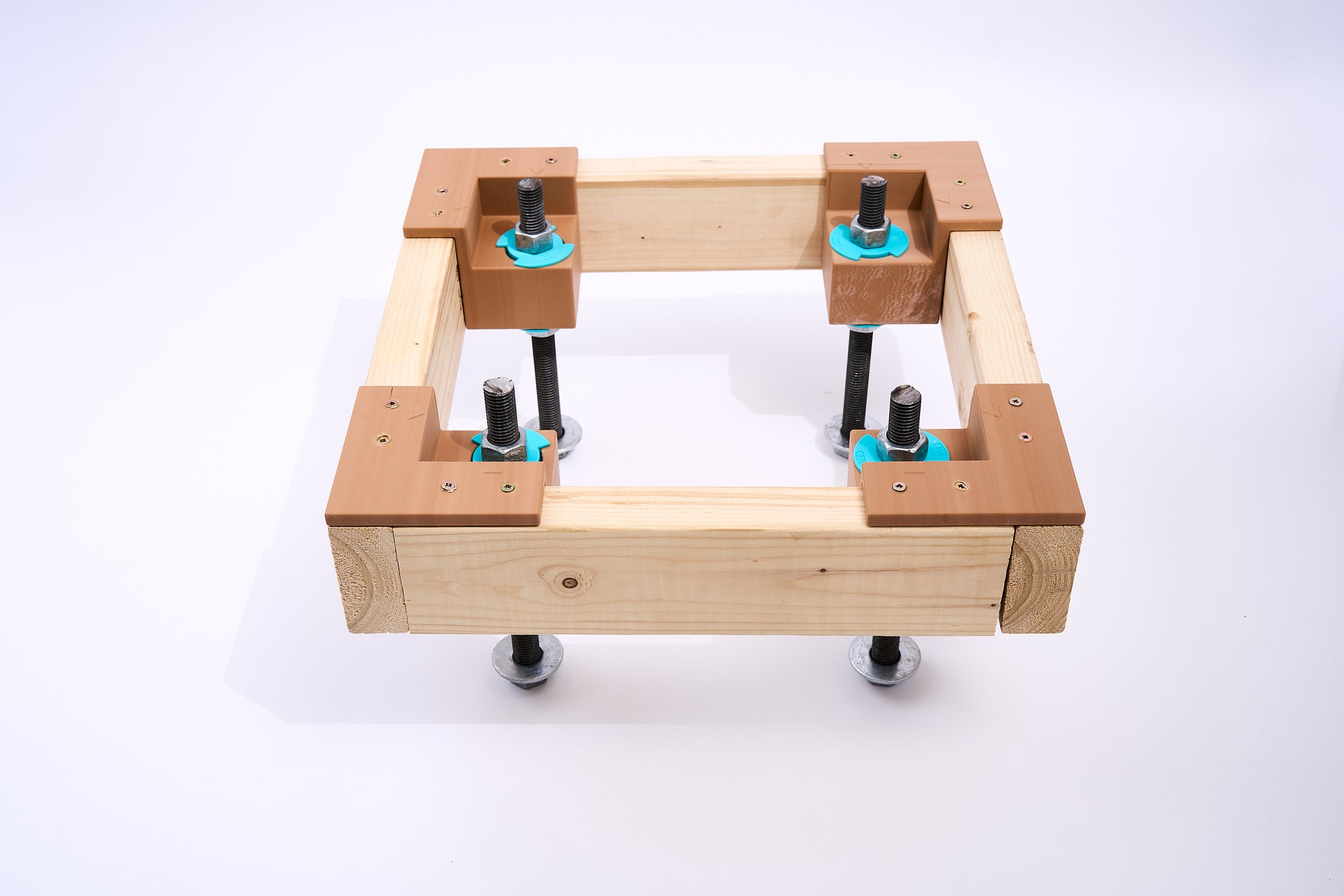

- be used as an anchor positioning template and accommodate anchor rod diameters from 3/4" to 1 1/2"
- use formwork supports and 2x4 as rails to fix in the formwork

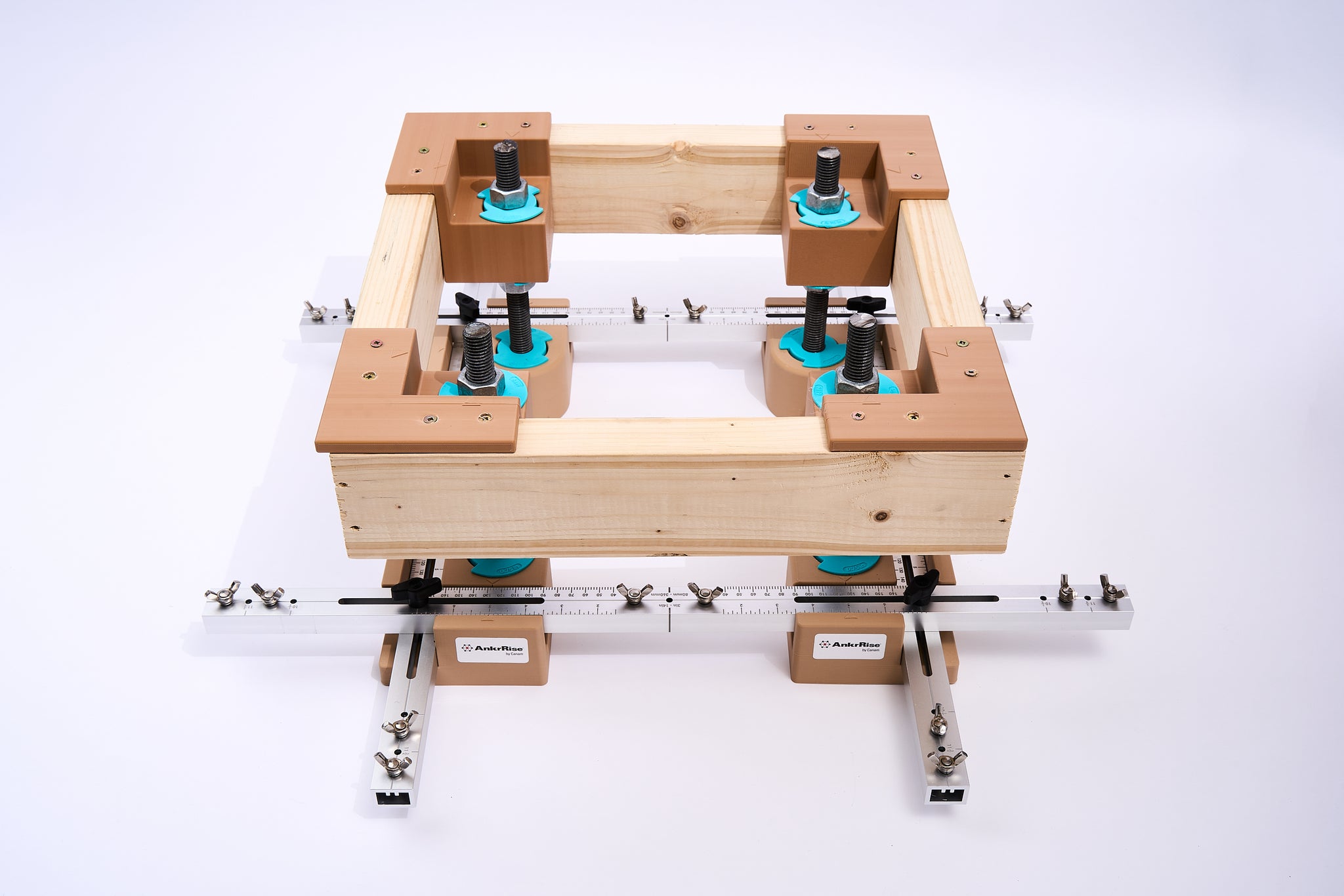

- use marking supports with a sharpie pen to accurately mark drilling locations on a traditional plywood template
- mark drilling locations on concrete for the installation of chemical/mechanical anchors

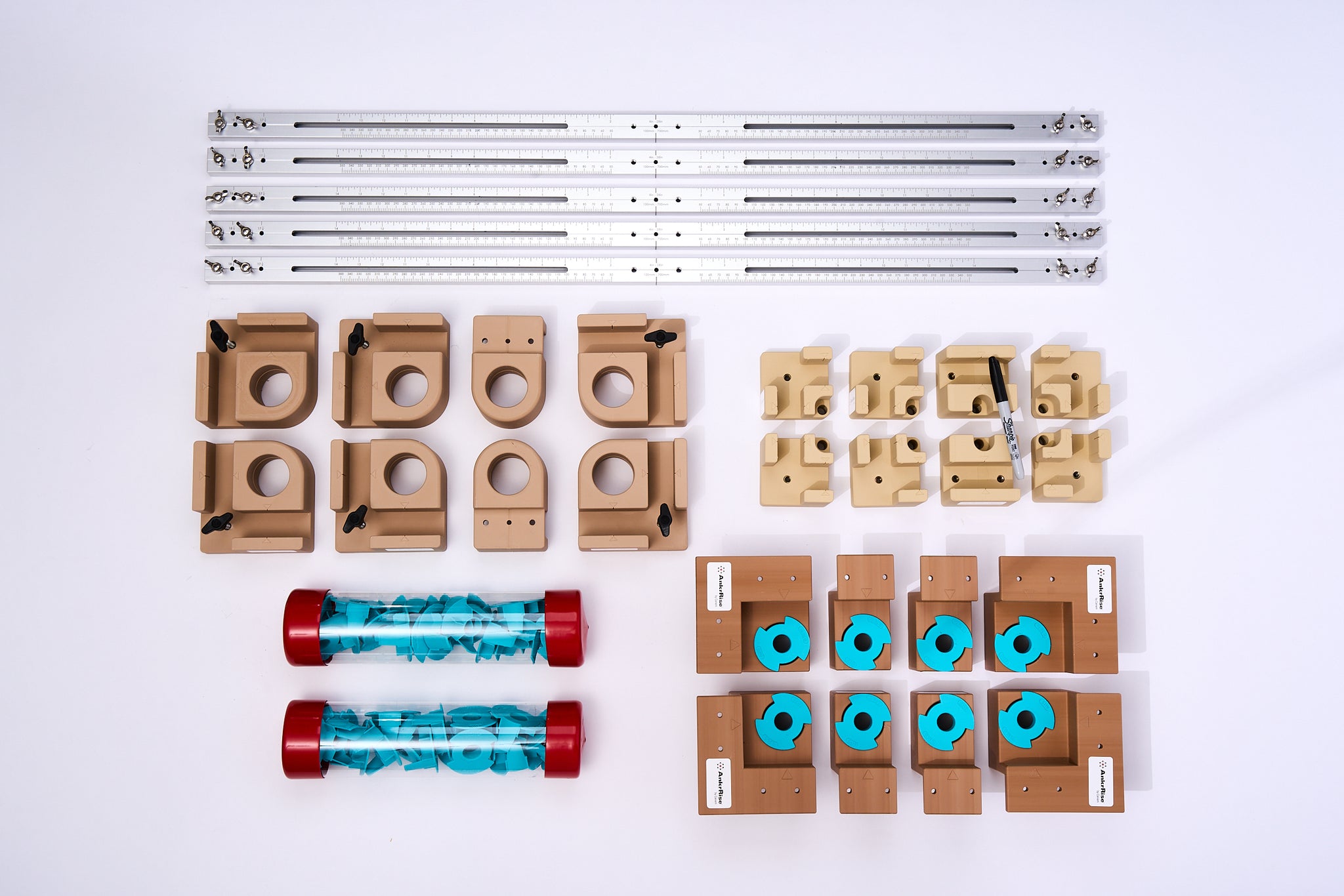

Parts included
| Qty | Part name |
| 5 | Precision rail (CC80mm - 700mm) |

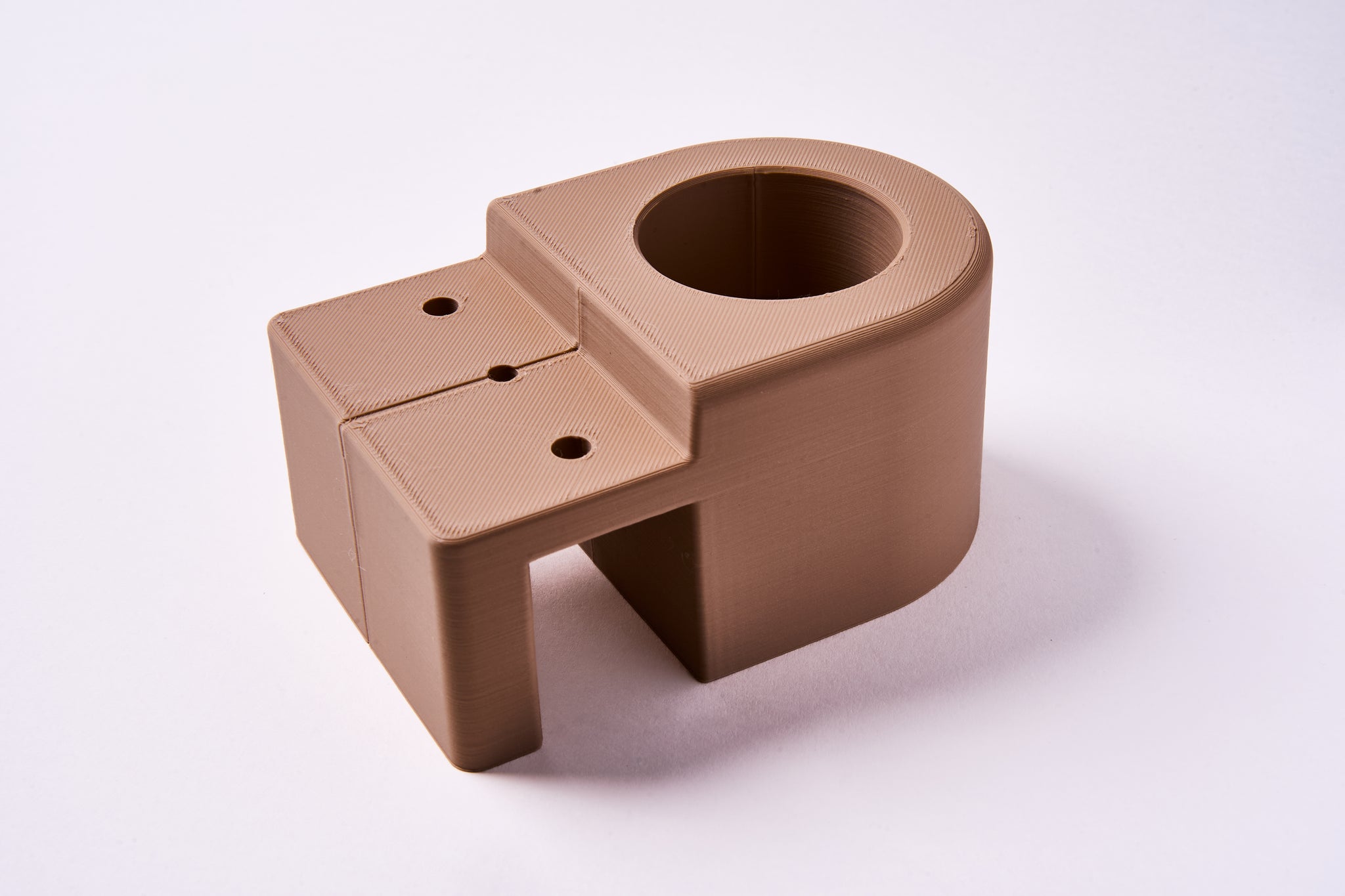

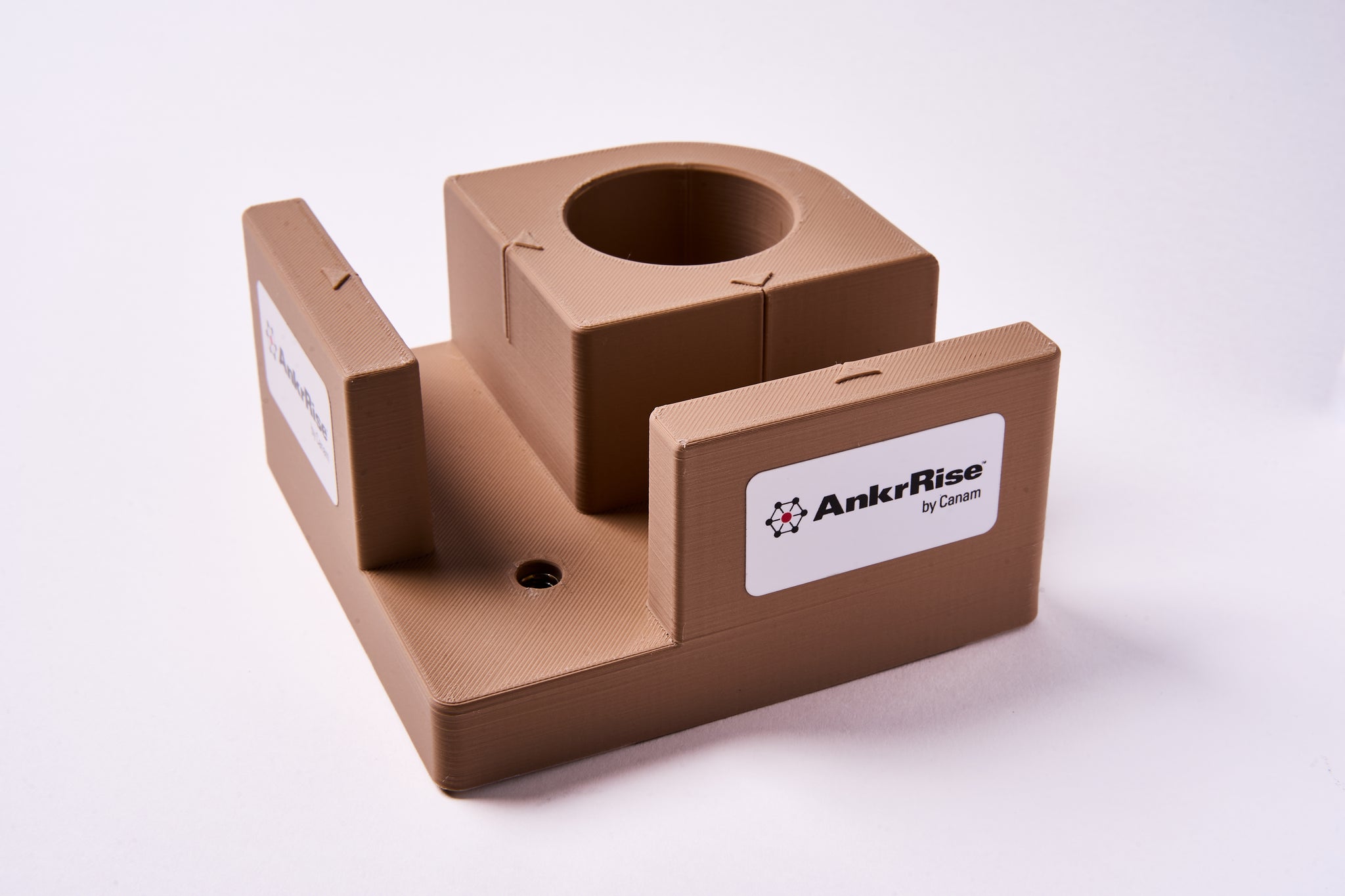

| 6 | Corner installation support |
| 2 | Center installation support |
| 32 | Adapter of one rod diameter size |
| 2 | Storage tube for 16 adapters |

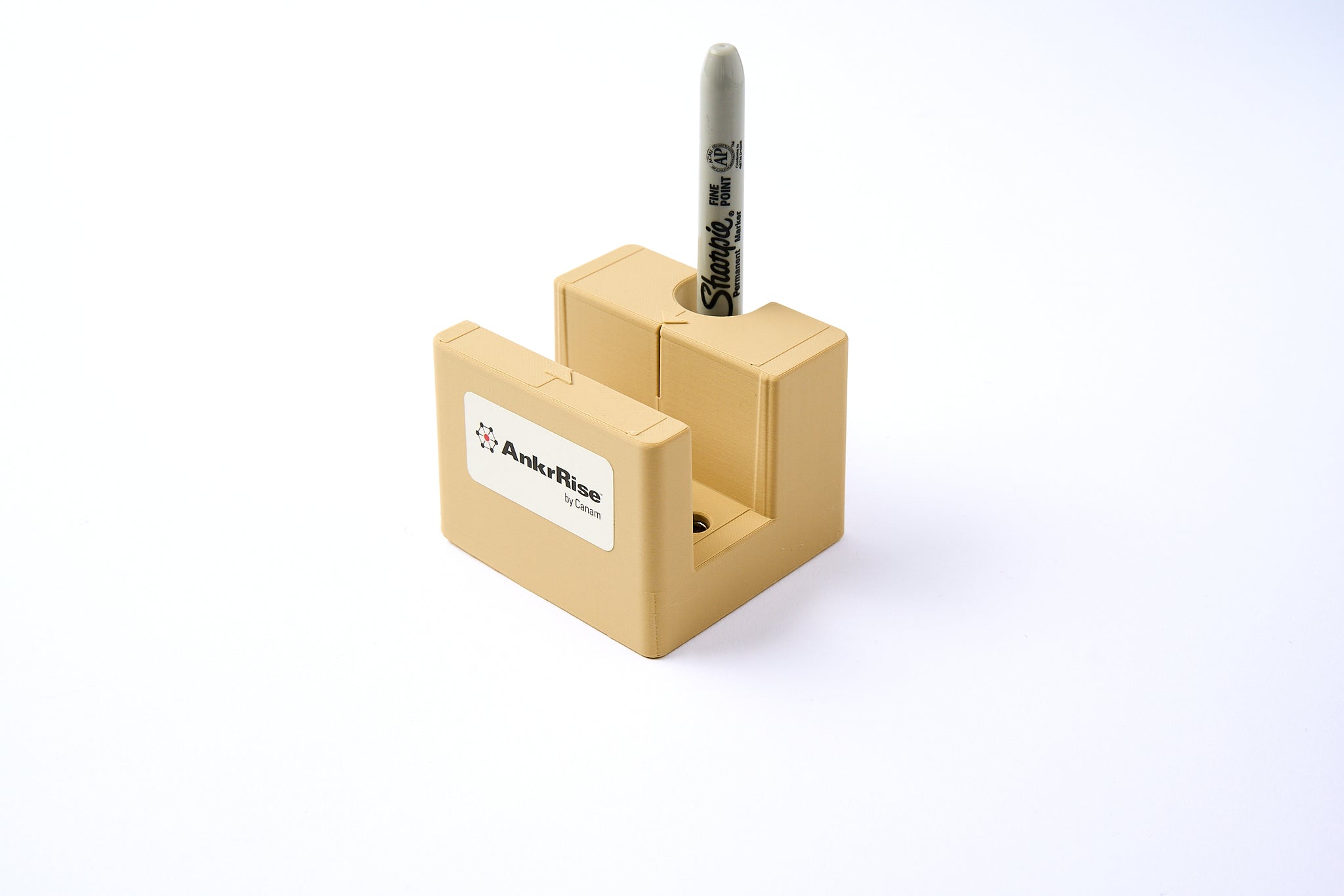

| 6 | Corner marking support (sharpie) |
| 2 | Center marking support (sharpie) |
| 1 | Sharpie Fine Tip Marker |
| 6 | M6 handle screws for support |
| 4 | Corner formwork support for 2x4 |
| 4 | Center formwork support for 2x4 |
| 1 | Transport box |
Adapters
| Adapter size | Color |
| Adapter ¾’’ |  |
| Adapter ⅞’’ |  |
| Adapter 1’’ |  |
| Adapter 1 ⅛’’ |  |
| Adapter 1 ¼’’ |  |
| Adapter 1 ⅜’’ |  |
| Adapter 1 ½’’ |  |
